DUB-1320

2-Port USB 3.0 ExpressCard

Apraksts

Blazing USB 3.0 Speed
Connect your laptop to USB 3.0 devices at blazing speeds of up to 5 Gbps - up to 10 times faster than USB 2.0. You can back up your photos, music, and Hdmovies to an external storage device faster than ever before.

Plug and Play Connectivity
Just slide the card into your ExpressCard slot and run the Setup CD; it's that simple to add 2 USB 3.0 ports to your PC.

Connect All Your Peripherals
Backward compatibility with USB 2.0 and USB 1.1 mean that you can connect any USB device to the DUB-1320. If you need more ports, you can connect additional USB hubs to connect up to 127 devices.


Īpašības

Interface
• ExpressCard 34
• PCiExpress 2.0 x1
• 2 downstream USB Type A (female) ports

Standards
• USB specification version 3.0
• USB specification version 2.0
• USB specification version 1.1*
• USB specification version 1.0
• OHCI (Open Host Controller Interface)
• EHCI (Enhanced Host Controller Interface)
• PCI Express 2.0

Data rates
• SuperSpeed: 4.8 Gbps**
• High Speed: 480 Mbps
• Full Speed: 12 Mbps
• Low Speed: 1.5 Mbps

Connectivity
• Up to 127 devices by cascading multiple hubs

System requirements
• Windows┬о 7/vista/XP SP3 or higher
• Available ExpressCard 34 or 54 slot

Supplied power
• Bus Power only:
  • Maximum 100 mA per port
• With External Power Adapter:
  • Maximum 900 mA per port

Power
• External power adapter 5 V / 2.5 A

Dimensions
• 117.19 x 40.54 x 14.55 mm

Weight
• 40.5 grams

Operating temperature
• 0 to 40 C

Storage temperature
• -20 C to 60 C

Operating humidity
• 0% to 80% (non-condensing)

Package contents
• D-Link 2-Port USB 3.0 ExpressCard
• Power adapter

Certifications
• USB-IF
• WHQL
• FCC
• CE

* Using a USB 1.1 port will affect device performance.
** Maximum transfer rate based on USB 3.0 specifications. Actual data throughput will vary.
All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, actual product appearance may differ than that depicted on the packaging.

Sertifikāti

Informācija pasūtījumam

DUB-1320  2-Port USB 3.0 ExpressCard

Attēli

DUB-1320

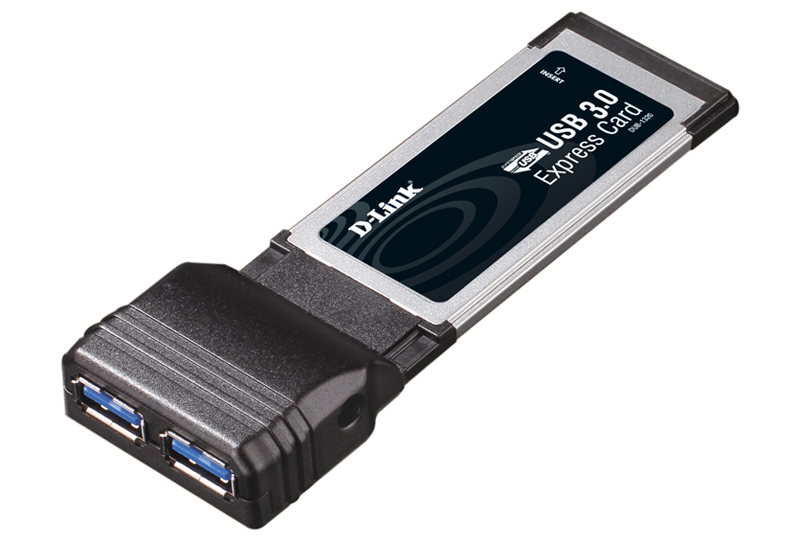

View from the right
