AN3UNew
Wireless N300 USB Adapter
Description
The AN3U Wireless N300 USB Adapter connects your computer to a high-speed wireless network and provides a fast wireless connection with superior reception. Once connected, you can access your network’s high-speed Internet connection and begin browsing the web, streaming videos and music, playing online games, and sharing content with your friends.
High Performance
The AN3U provides fast wireless performance for your PC. You can easily add the Wireless N300 USB Adapter to a PC to access a high-speed Internet connection while sharing photos, files, music, video, printers, and storage. Enhance your Internet experience with a faster wireless connection and enjoy smooth digital phone calls, gaming, downloading, and video streaming. The AN3U supports WPA2/WPA3 wireless encryption to help prevent outside intrusion and protect your personal information from being exposed.
Get Connected, Stay Connected
Powered by Wireless N technology, this adapter provides high-performance wireless connectivity. The AN3U is designed for use in bigger homes and for users that demand higher networking performance. Maximize your wireless performance by connecting this adapter to a Wireless N router and stay connected from virtually anywhere in your home. The AN3U is also backward compatible with 802.11g technology, so you can use it with older equipment too*.
General features
Device Interfaces
• USB 2.0
LEDs
• Status
- Blinking whtie: Disconnected
- Fast blinking white: Scanning and connected
- Off: Driver unistalled or device disabled
Antenna
• 2 internal antennas
Requirements
• Operating System: Windows 10 32/64-bit, Windows 11 64-bit
• Interface: USB port**
Standards
• IEEE 802.11b/g/n
Wireless Frequency
• 802.11b/g/n: 2.4 GHz to 2.4835 GHz
Security
• WPA2/WPA3
Wireless speed*
• IEEE 802.11b: 1, 2, 5.5 and 11 Mbit/s
• IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48 and 54 Mbit/s
• IEEE 802.11n: up to 300 Mbit/s (MCS0 ~ MCS15)
Transmitter Output Power***
• IEEE 802.11b:
19 dBm
• IEEE 802.11g:
19 dBm
• IEEE 802.11n (2.4 GHz/HT-20/HT-40):
18 dBm
Receiver Sensitivity
• IEEE 802.11b:
-76 dBm
• IEEE 802.11g:
-82 dBm at 6 Mbit/s
-81 dBm at 9 Mbit/s
-79 dBm at 12 Mbit/s
-77 dBm at 18 Mbit/s
-74 dBm at 24 Mbit/s
-70 dBm at 36 Mbit/s
-66 dBm at 48 Mbit/s
-65 dBm at 54 Mbit/s
• IEEE 802.11n:
2.4 GHz/HT-20:
-82 dBm at MCS0
-79 dBm at MCS1
-77 dBm at MCS2
-74 dBm at MCS3
-70 dBm at MCS4
-66 dBm at MCS5
-65 dBm at MCS6
-64 dBm at MCS7
2.4 GHz/HT-40:
-79 dBm at MCS0
-76 dBm at MCS1
-74 dBm at MCS2
-71 dBm at MCS3
-67 dBm at MCS4
-63 dBm at MCS5
-62 dBm at MCS6
-61 dBm at MCS7
Physical Parameters
Dimensions
• 29.65 x 17.7 x 9.7 mm
Weight
• 4.16 g
Current Consumption
• 220 mA (in standby mode)
• 330 mA (in operating mode)
Operating Voltage
• 5 V DC ±10%
Temperature
• Operating: 0 to 40°C
• Storage: -20 to 75°C
Humidity
• Operating: 10% to 90% non-condensing
• Storage: 5% to 95% non-condensing
Certifications
• FCC Class B
• CE
• IC
* Maximum wireless signal rate derived from IEEE standard 802.11n specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors may adversely affect wireless signal range.
** Using a USB 1.1 port will affect device performance. USB 2.0 port or higher recommended.
*** Maximum power output varies in each country depending on local power regulations.
Certificates
Order info
AN3U/A1A Wireless N300 USB Adapter

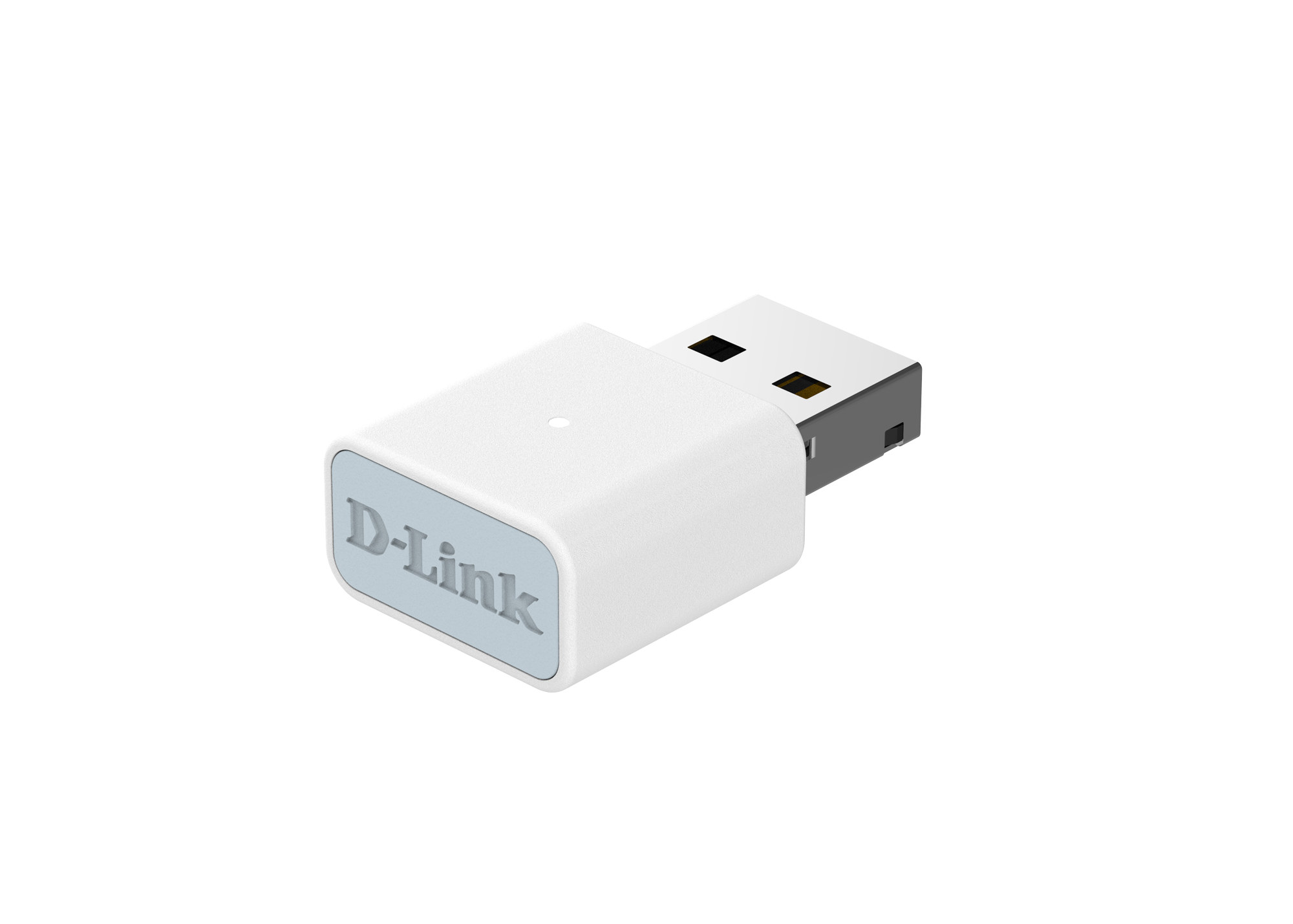

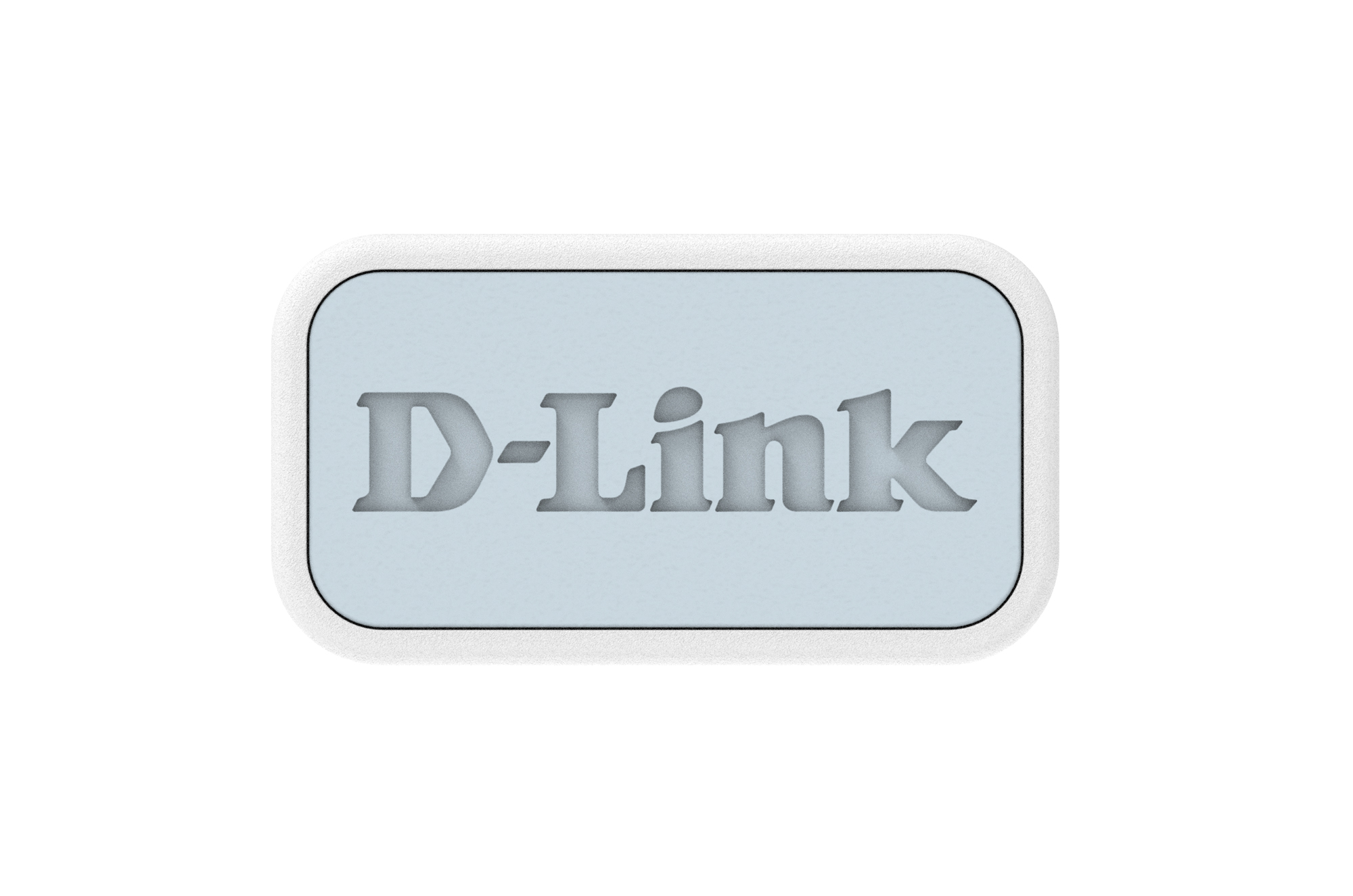

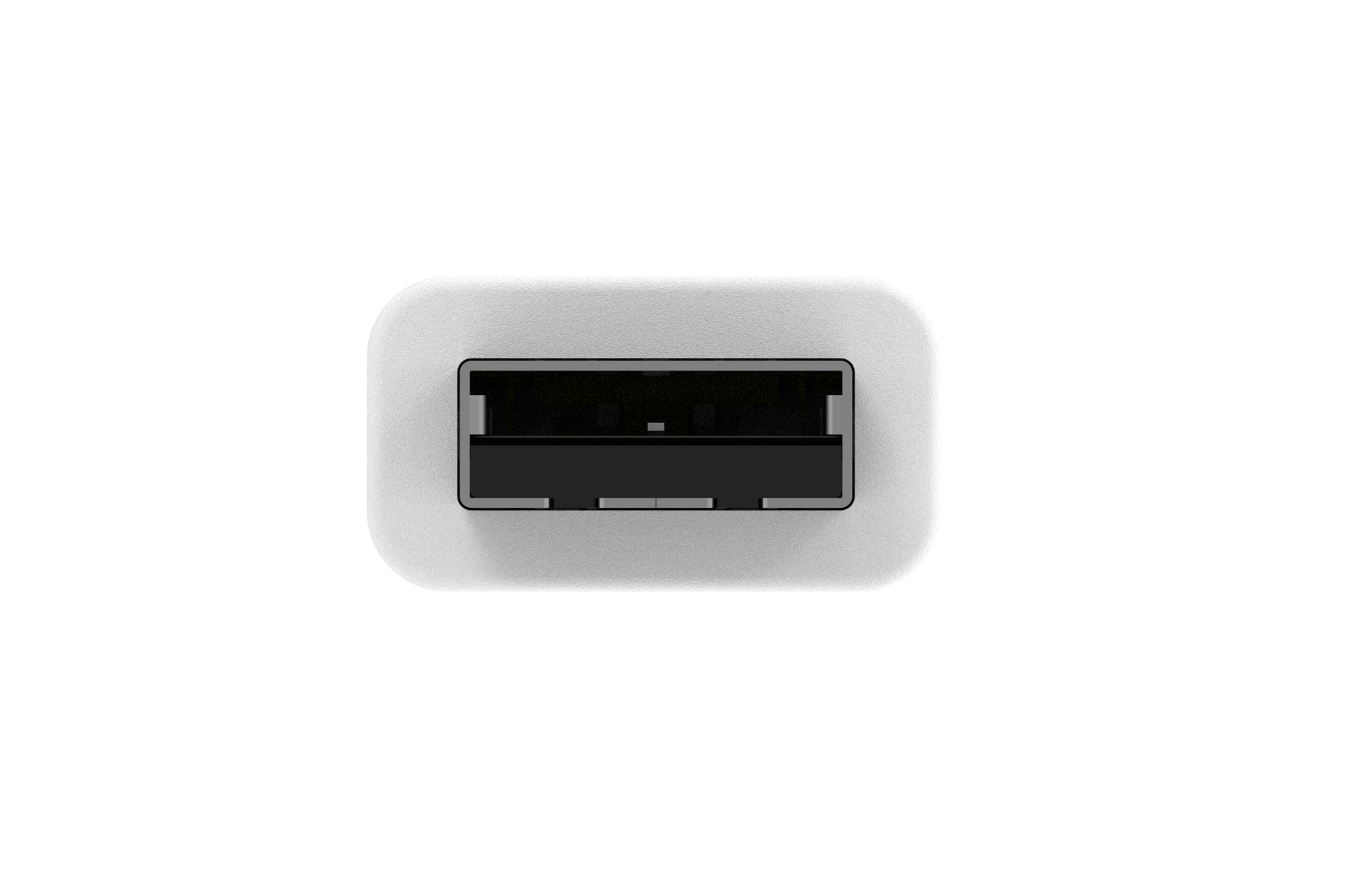

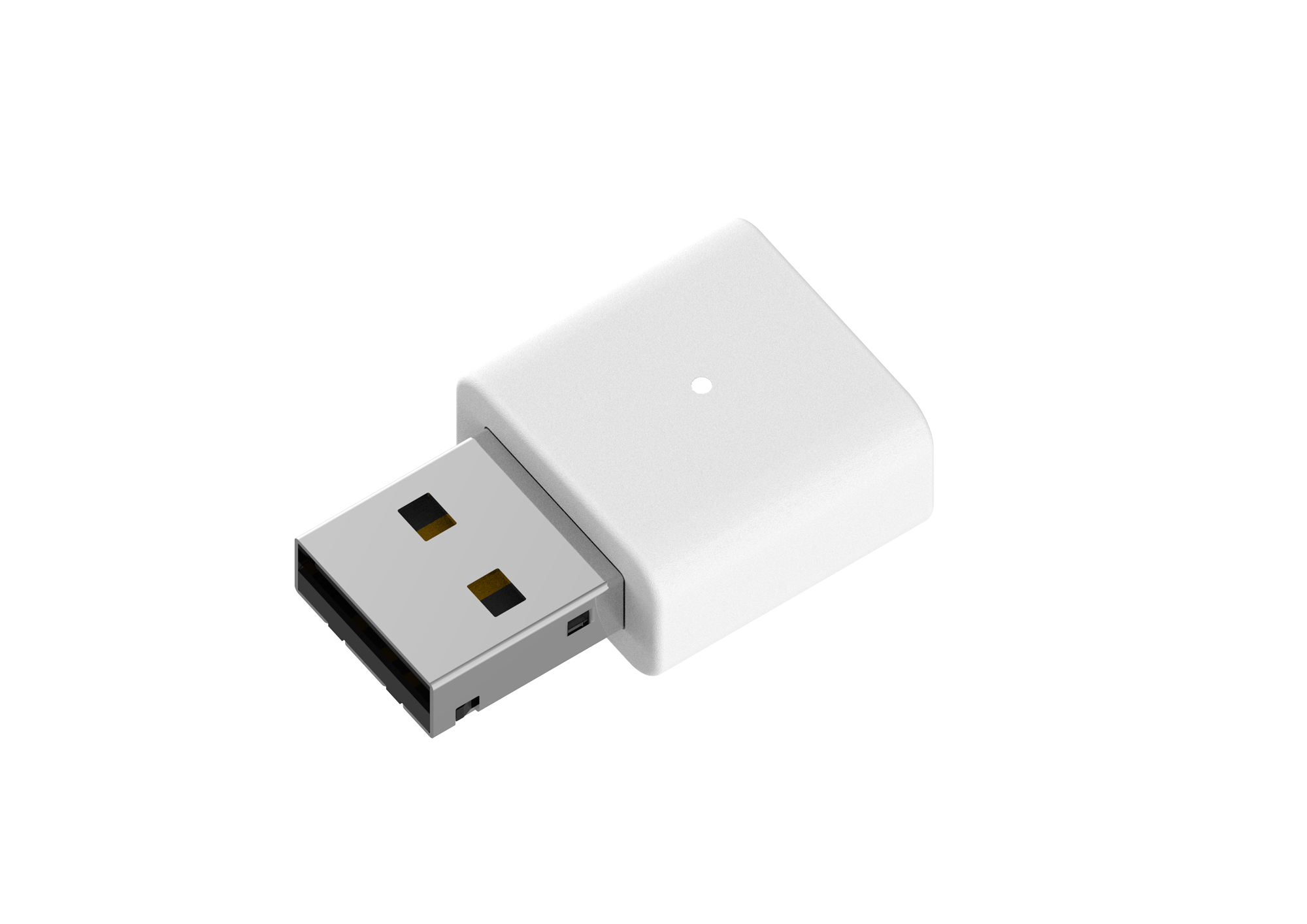

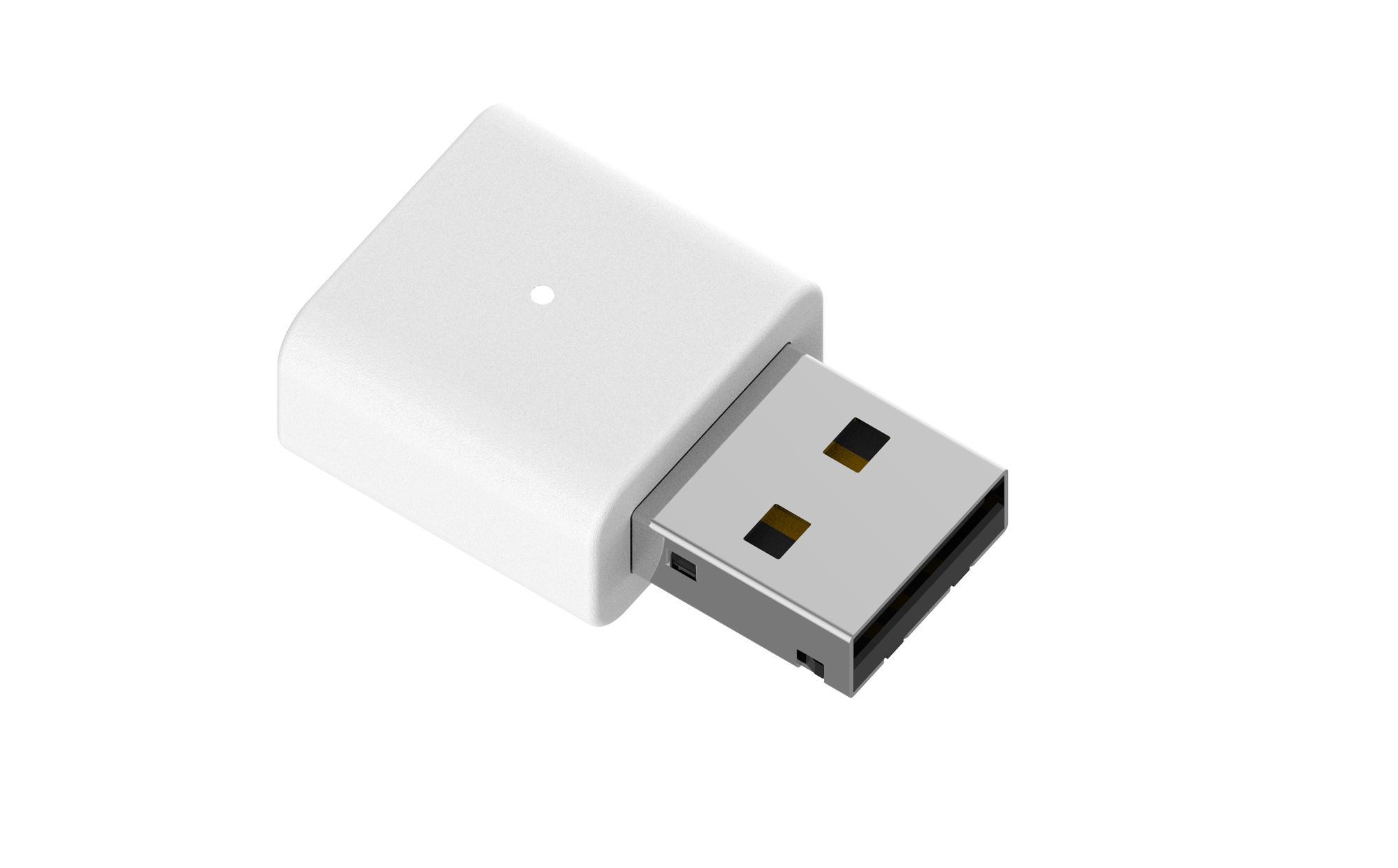

Pictures
AN3U/A1
