DAP-3712
20 km Long Range 802.11ac Wireless Bridge
Description
The DAP-3712 is an essential solution in providing connectivity to previously believed impossible-to-reach areas. Industry leading core technologies, especially designed for long distance coverage, bring high-speed connectivity to rural areas and challenging terrain equivalent to that of a wired connection.
TDMA Technology Cuts Through the Chatter, Creating Even Stabler Coverage
The DAP-3712’s transmission capabilities are augmented thanks to integrated Time Division Multiple Access (TDMA). Everything works more efficiently on a schedule, and the DAP-3712 is no different: TDMA creates a schedule for multiple connected clients to work to. Senders and receivers get their own time slot for transmissions. This eliminates hidden node data collisions, in turn maximizing airtime efficiency, significantly cutting down interference and making for a highly scalable solution.
Cutting Edge Hardware Makes the Previously Impossible, Possible
The DAP-3712 features state-of-the-art hardware, including high-gain 23 dBi directional antenna. This powerful antenna effortlessly extends high-speed coverage to distances of up to 20 km away.
Discreet Deployment that’s Hassle-Free with Power Over Ethernet (PoE)
Power sockets can be tricky to come by, especially in outdoor deployments. But PoE makes for easy installation and a simple, clean setup. No need to run extra power lines, no added hassle when configuring your hardwiring, and no more cable clutter.

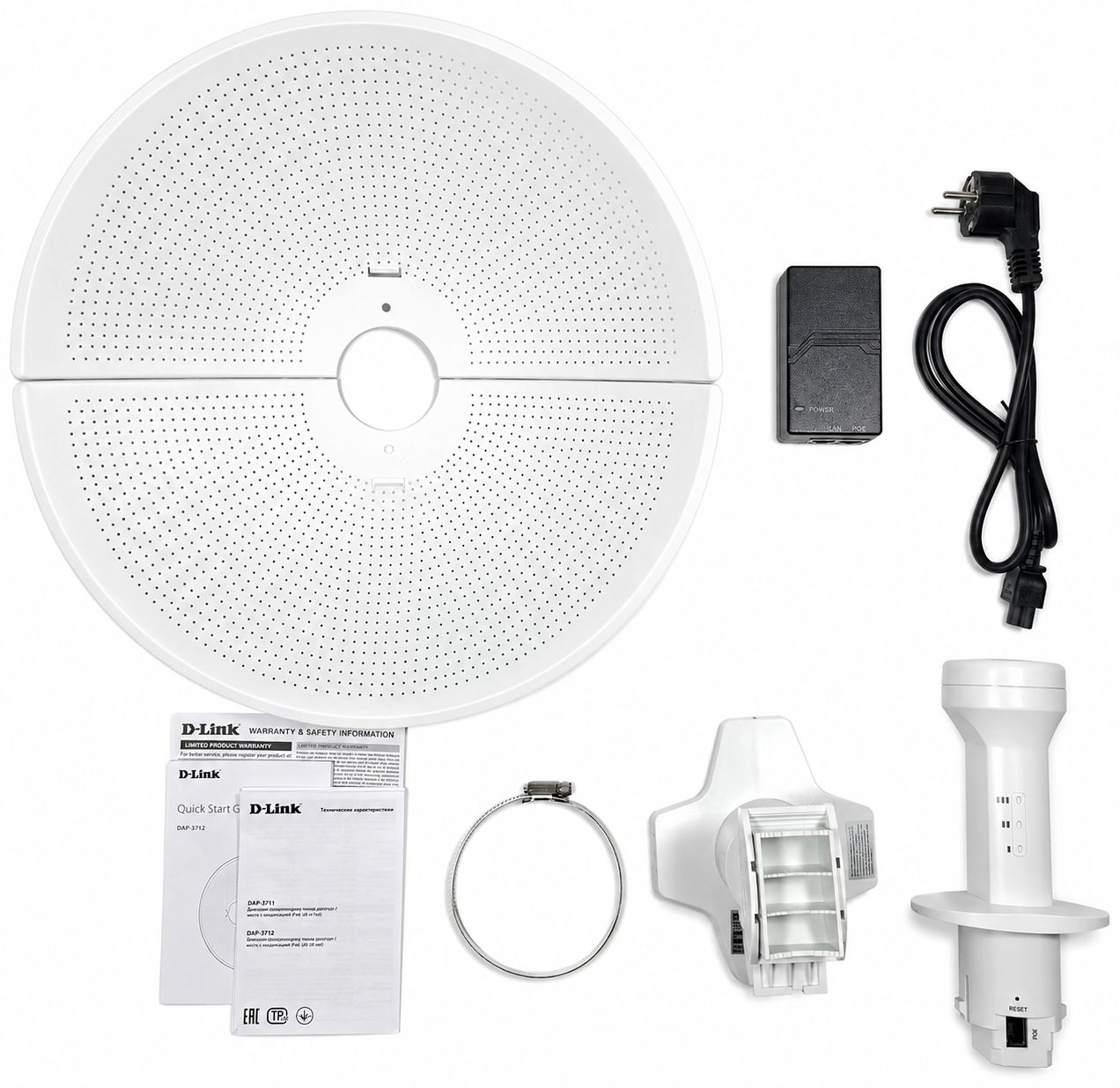

Form Without Sacrificing Function
It can be hard to look good while still being functional, yet this device strike the balance just right. The DAP-3712 features a compact dish form factor, effortlessly supplying long distance coverage. The DAP-3712 boasts an IP66 rating, meaning they fight dust and repel water for a longer product life.
General features
Interfaces
• 802.11ac/a/n 5 GHz wireless
• 10/100/1000Base-T LAN (PoE) port
• Reset button
LEDs
• Signal strength
Antenna
• Dish antenna with 23 dBi
Beamwidth
• H: 10°, V: 10°
Protection
• 8 kV ESD Protection
Enclosure
• ABS, IP66 compliant
Standards
• 802.11a/n/ac
Functionality
Operation Modes
• AP
• Station
• WDS AP
• WDS Station
Operating Frequency
• 5180~5320 MHz, 5745~5825 MHz
Bandwidth Support
• 20/40/80 MHz
Wireless Speed*
• IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48 and 54 Mbit/s
• IEEE 802.11n: up to 300 Mbit/s
• IEEE 802.11ac: up to 867 Mbit/s
Transmitter Output Power**
• IEEE 802.11a:
30±2 dBm at 6~36 Mbit/s
27±2 dBm at 48~54 Mbit/s
• IEEE 802.11n:
27±2 dBm at MCS0-MCS4
25±2 dBm at MCS5-MCS7
• IEEE 802.11ac:
27±2 dBm at MCS0
24±2 dBm at MCS9
Receiver Sensitivity
• IEEE 802.11a:
-91±2 dBm at 6 Mbit/s
-74±2 dBm at 54 Mbit/s
• IEEE 802.11n:
5 GHz/HT-20:
-91 dBm at MCS0
-71 dBm at MCS7
5 GHz/HT-40:
-89 dBm at MCS0
-69 dBm at MCS7
• IEEE 802.11ac:
VHT-20:
-91 dBm at MCS0
-66 dBm at MCS8
VHT-40:
-62 dBm at MCS0
VHT-80:
-84 dBm at MCS0
-60 dBm at MCS9
Software
Wireless Configuration
• Auto channel support
• Transmit power selection
• SSID broadcast enabling/disabling
Security
• 802.11i 128-bit AES Personal / Enterprise
System Tools
• Ping
• Traceroute,
• NTP
• Ping watchdog
• Syslog
• Spectrum analyzer
• Throughput testing (lperf)
Smart Wireless Technology
• TDMA
• Auto ACK
• Intelligent rate control
• Co-channel interference avoidance
Advanced Features
• Max. station limit
LAN Type
• Static
• DHCP
VLAN Support
• Yes
Firewall
• IP / MAC filter
Monitors
• Throughput
• Interfaces
• Routes table
• Bridge table
• ARP table
• AP information
• Syslog
System Management
• Web-based user interface (HTTP)
Firmware Upgrade
• Web-based upgrade
Physical Parameters
Dimensions
• Diameter: 372 mm
• Height: 241 mm
Weight
• 900 g
Power Input
• PoE 802.3at: 48 V, 0.5 A
Max. Power Consumption
• 12 W
Temperature
• Operating: -40 to 65 °C
• Storage: -40 to 85 °C
Humidity
• Operating: 10% to 90% non-condensing
• Storage: 5% to 95% non-condensing
Certifications
• CE
• FCC
* Maximum wireless signal rate derived from IEEE standard 802.11ac and 802.11n specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors will adversely affect wireless signal range.
** Note that the maximum transmit power varies depending on the regulations of individual countries and jurisdictions.
Certificates
Order info
DAP-3712/A1A
|
20 km Long Range 802.11ac Wireless Bridge
|
